What is DFMA^®?

DFMA^® (Design for Manufacture and Assembly) is an approach rooted in the principle of simplicity, embodied by modern figures like Elon Musk's: "The best part is no part; the best process is no process." This mindset drives the removal of unnecessary complexity in product design, ensuring streamlined processes and minimal components while maximizing quality and efficiency. DFMA provides actionable guidelines to simplify structures, optimize manufacturing, and reduce costs, creating a competitive advantage in today's dynamic market.

Design for Manufacturing (DFM)

Design for Manufacturing (also sometimes known as design for manufactuability or DFM) is a strategic approach in product development that focuses on designing products to simplify their manufacturing processes, reduce production costs, and improve overall quality. By considering manufacturing constraints and capabilities early in the design phase, DFM ensures that products are optimized for efficient and cost-effective production, minimizing potential issues that could arise during manufacturing.

Goals of Design for Manufacturing

The primary objectives of DFM include:

• Reduce manufacturing costs through better design: Address manufacturability challenges and key cost factors early during product development.
• Accelerate time-to-market for new products: Streamline the design process to minimize revisions and ensure the product is right the first time.
• Enhance collaboration with suppliers: Gain a deep understanding of product cost components and manufacturing feasibility to facilitate informed and effective negotiations.

Who Should Care About DFM?

DFM is crucial for a wide range of stakeholders in the product development and manufacturing lifecycle:

• Product Designers and Engineers: Integrating DFM principles helps them create designs that are not only innovative but also practical and manufacturable.
• Manufacturers: Streamlined designs reduce complexity in the production process, leading to lower costs and faster turnaround times.
• Project Managers: Implementing DFM can lead to more predictable production schedules and budgets.
• Business Owners and Executives: DFM contributes to improved profitability through cost savings and enhanced product quality.
• Customers: End-users benefit from higher-quality products that are more reliable and potentially less expensive due to reduced manufacturing costs.

Manufacturing Processes to Consider

When applying DFM principles, it's essential to consider the specific manufacturing processes that will be used to produce the product. Some common processes include:

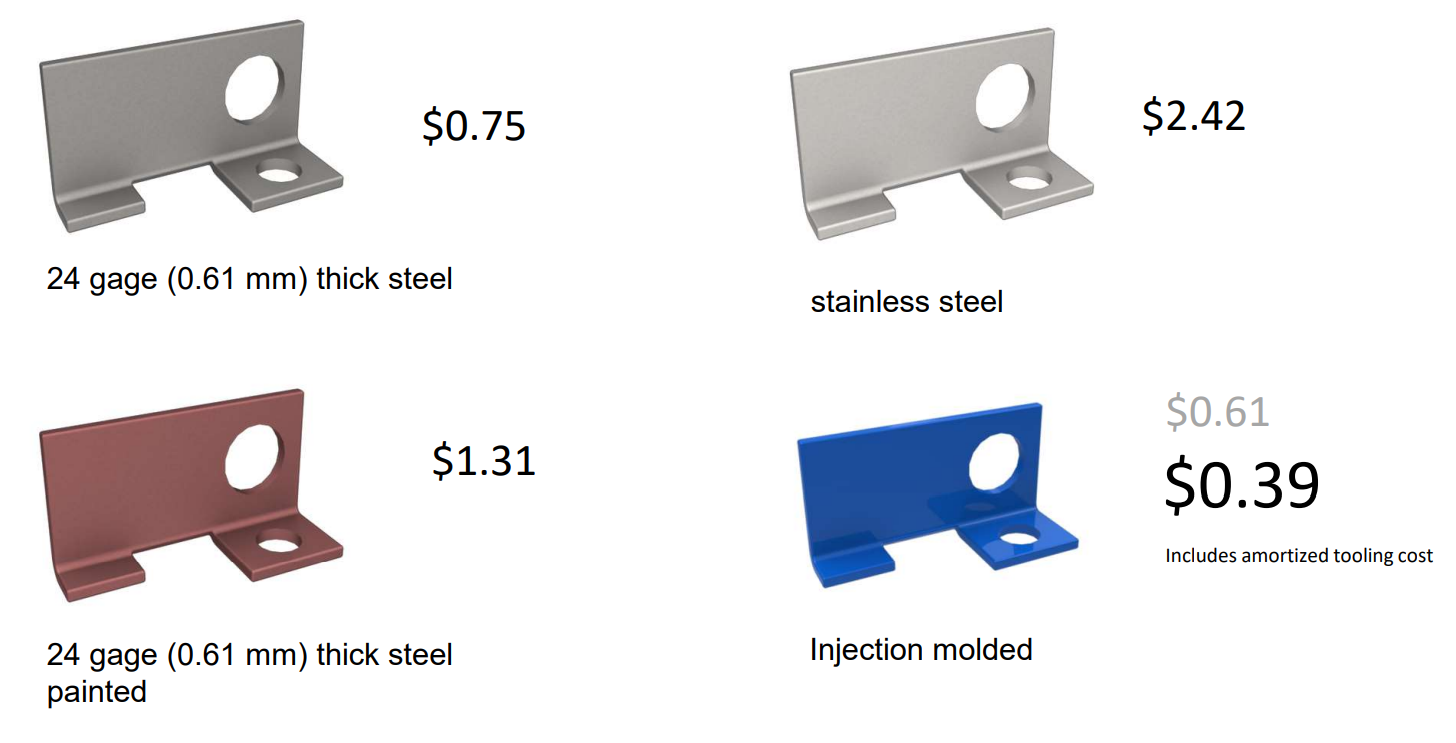

• Injection Molding: Ideal for producing complex plastic parts in large volumes. DFM for injection molding involves designing parts with uniform wall thickness, appropriate draft angles, and minimizing undercuts to reduce mold complexity and cost.
• Machining: Used for precision components made from metals and plastics. DFM for machining focuses on simplifying geometries, reducing the number of setups, and selecting appropriate materials to decrease machining time and costs.
• Sheet Metal Fabrication: Common for enclosures and structural components. DFM principles include designing for efficient cutting, bending, and assembly processes while minimizing waste material.
• Die Casting: Suitable for high-volume metal parts with intricate shapes. DFM involves designing parts that allow for easy ejection from molds and reducing secondary operations.
• Extrusion: Used for creating continuous profiles in materials like plastics and metals. DFM involves standardizing cross-sectional designs and considering material flow characteristics.

Design for Assembly (DFA)

Design for Assembly (DFA) is a critical component of modern product development, complementing Design for Manufacturing (DFM) by focusing on the efficient and cost-effective assembly of products. While DFM emphasizes the manufacturability of individual components, DFA prioritizes the ease with which these components come together to form a complete product. By systematically analyzing and refining assembly processes, DFA helps manufacturers reduce complexity, optimize workflows, and deliver high-quality products with minimal waste.

The core philosophy of DFA revolves around the principle that "the best process is no process." This approach challenges designers to question whether each component, feature, or step in the assembly process is truly necessary. By minimizing the number of parts and simplifying interactions between them, DFA not only reduces assembly time but also minimizes the risk of errors, improves product reliability, and lowers production costs.

Key strategies in DFA include:

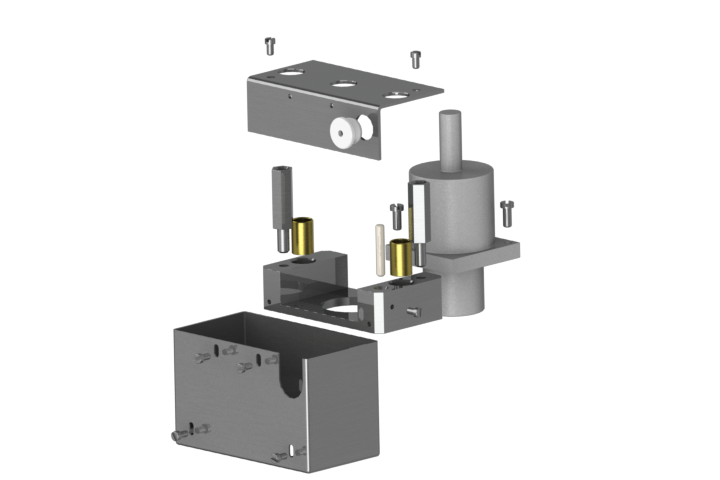

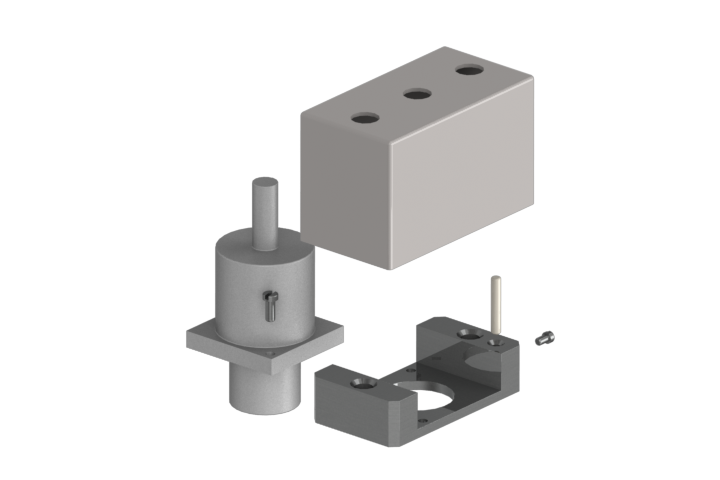

• Reducing the Number of Parts: Eliminating unnecessary components is at the heart of DFA. Fewer parts mean fewer opportunities for misalignment, damage, or assembly errors, as well as lower inventory and logistics costs. For example, consolidating multiple parts into a single molded or stamped piece can drastically simplify assembly.
• Standardizing Components: Using common parts across products and assemblies reduces the need for specialized tools, streamlines inventory management, and simplifies training for assembly workers.
• Designing for Automatic Assembly: By ensuring parts are symmetrical, self-locating, or easily handled by robotic systems, DFA facilitates the integration of automation. Features like alignment pins, snap-fit connections, and chamfers enhance the assembly process's efficiency and accuracy.
• Minimizing Orientation and Handling Requirements: Parts that require precise orientation during assembly increase complexity and time. Designing components that can be assembled in any orientation, or that are easy to grasp and position, improves workflow efficiency.
• Reducing Fasteners: Mechanical fasteners, such as screws or bolts, often introduce additional steps and require tools. By replacing them with alternatives like snap-fits, adhesives, or welding, manufacturers can eliminate these time-consuming processes.

DFA delivers tangible benefits across the product lifecycle. During the design phase, it fosters collaboration between design and manufacturing teams, ensuring that assembly considerations are integrated early in development. During production, it reduces cycle times, assembly errors, and costs, enabling faster time-to-market and greater scalability. For end users, DFA often results in more reliable and durable products, enhancing customer satisfaction and brand reputation.

Modern DFA practices also embrace sustainability by reducing material waste and energy consumption during assembly. Simplified designs often use fewer materials, require less packaging, and reduce the environmental impact of production and distribution.

In conclusion, Design for Assembly is not just a methodology but a mindset that prioritizes simplicity and efficiency at every stage of product development. By eliminating unnecessary steps, streamlining operations, and fostering innovation, DFA ensures that products are not only manufacturable but also easily and cost-effectively assembled. This holistic approach highlights the importance of viewing assembly as an integral part of the product's overall success.

Key Principles of DFMA^®:

Putting it all together, Design for Manufacturing and Assembly (DFMA) represents the powerful synergy between Design for Manufacturing (DFM) and Design for Assembly (DFA). By combining these methodologies, DFMA provides a holistic approach to product design, ensuring that components are both easy to manufacture and assemble. This unified framework minimizes inefficiencies, reduces costs, and accelerates production timelines while maintaining high-quality standards.

DFM focuses on optimizing the manufacturability of individual components. It addresses factors such as material selection, process capabilities, and tolerances, ensuring that each part can be produced efficiently and cost-effectively. On the other hand, DFA emphasizes the ease and efficiency of assembling those components into the final product, striving for streamlined processes and simplified workflows. Together, they form DFMA, a comprehensive approach that bridges the gap between manufacturing and assembly, fostering collaboration and innovation throughout the product lifecycle.

• Simplification: Both DFM and DFA prioritize simplification as a cornerstone of efficient design. For DFM, this means reducing the complexity of manufacturing processes by limiting the number of operations or selecting materials that are easy to process. For DFA, simplification involves minimizing the number of parts and designing components that easily align or fit together. When combined in DFMA, simplification drives the creation of products that are easier to build from start to finish, reducing labor, tooling, and material costs.
• Standardization: Standardization is essential for ensuring consistency and scalability in production. DFM encourages the use of common, readily available materials and processes to reduce the need for specialized equipment. DFA aligns with this by promoting the use of standardized components that can be assembled seamlessly. Together in DFMA, standardization reduces supply chain complexity, simplifies inventory management, and enables faster responses to market demands.
• Error Reduction: DFM reduces errors by designing parts that are easier to manufacture within tight tolerances, ensuring consistency across production runs. DFA complements this by focusing on intuitive, error-proof assembly processes, such as incorporating alignment features or self-locating parts. DFMA integrates these efforts, creating designs that are inherently robust and error-resistant, minimizing the need for costly rework or quality control measures.
• Automation Compatibility: Automation is a key driver of efficiency in modern manufacturing and assembly. DFM ensures that components can be fabricated using automated machinery with minimal manual intervention. DFA takes this further by designing assemblies that are compatible with robotic systems, such as parts that can be easily gripped, positioned, or fastened. Together, DFMA ensures that the entire production and assembly process is optimized for automation, resulting in faster, more reliable workflows.

The integration of DFM and DFA into DFMA encourages cross-functional collaboration between design, manufacturing, and assembly teams. Early-stage design reviews ensure that every decision is aligned with both manufacturing and assembly objectives, reducing the risk of costly redesigns or production delays. By fostering a shared understanding of constraints and opportunities, DFMA creates a unified framework for innovation and efficiency.

DFMA also aligns with sustainability goals by reducing material waste, energy consumption, and the environmental impact of production. Simplified designs often require fewer resources, and streamlined assembly processes lower energy demands. Additionally, the use of standardized materials and components facilitates recycling and reuse, contributing to a circular economy.

In conclusion, the cohesion between DFM and DFA within DFMA provides a comprehensive strategy for achieving excellence in product development. By focusing on simplification, standardization, error reduction, and automation compatibility, DFMA ensures that products are not only manufacturable and assembleable but also cost-effective, reliable, and sustainable. This integrated approach is vital for organizations seeking to deliver high-quality products in an increasingly competitive and dynamic market.

Benefits of DFMA^®:

• Cost Reduction: Simplified designs lower material and labor costs.
• Efficiency: Minimal parts and processes lead to faster production and assembly.
• Innovation: Encourages groundbreaking designs by focusing on necessity and simplicity.

In summary, DFMA is about designing products with their manufacturability and assembly in mind, aiming to simplify and optimize the product development process from conception to production, leading to cost savings, quality improvement, and efficiency enhancement. For specific case studies pertaining to use of DFMA^® click here.

Also, check out the 2024 DFMA Forum page for the most recent papers and presentations on Design for Manufacturing and Assembly.
